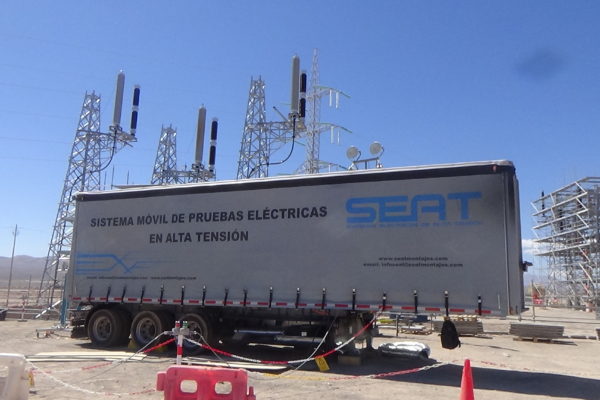

AC Resonant System for In Situ tests of
This system allows tests on extruded cables in accordance with IEC 60840 and 62067 after they have been installed. These standards specify a test with AC voltage only in a frequency range f min = 20 Hz up to f max = 300 Hz, not allowing DC or VLF tests.

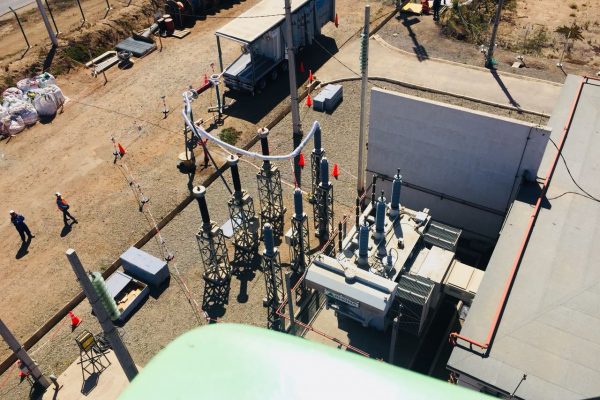

The test system and the test object form a series resonant circuit which, for physical reasons, guarantees a purely sinusoidal waveform of the test voltage.
In the event of cable failure, only minimal damage would occur as the amount of energy accumulated in the test circuit is limited.
The frequency operating range determines the wide load range for testing very short cables to cables with several kilometers in length.
Advantages of having our In Situ Test System
Determination of the status of the Insulated Cable System before commissioning or entry into service.
Manufacturing faults detection of the cable or accessories installation, such as terminations (external and GIS) / joints.
No intervention is necessary to the existing electrical system.
It does not risk generating Black-out or unexpected service exits.
Reduced power to carry out tests.
Non destructive Tests.
Noise level due to partial discharge <10 pC.
Partial Discharge Records (optional).
Purely sinusoidal waveform.

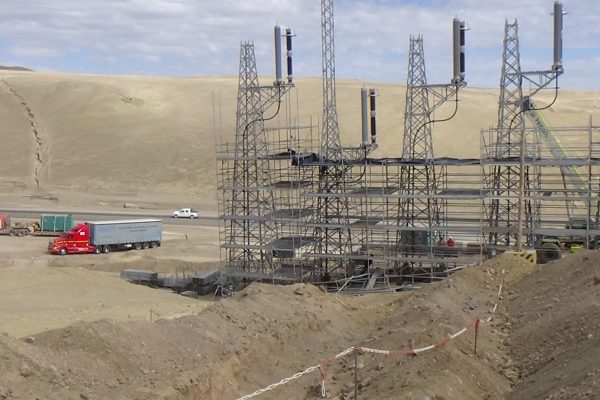

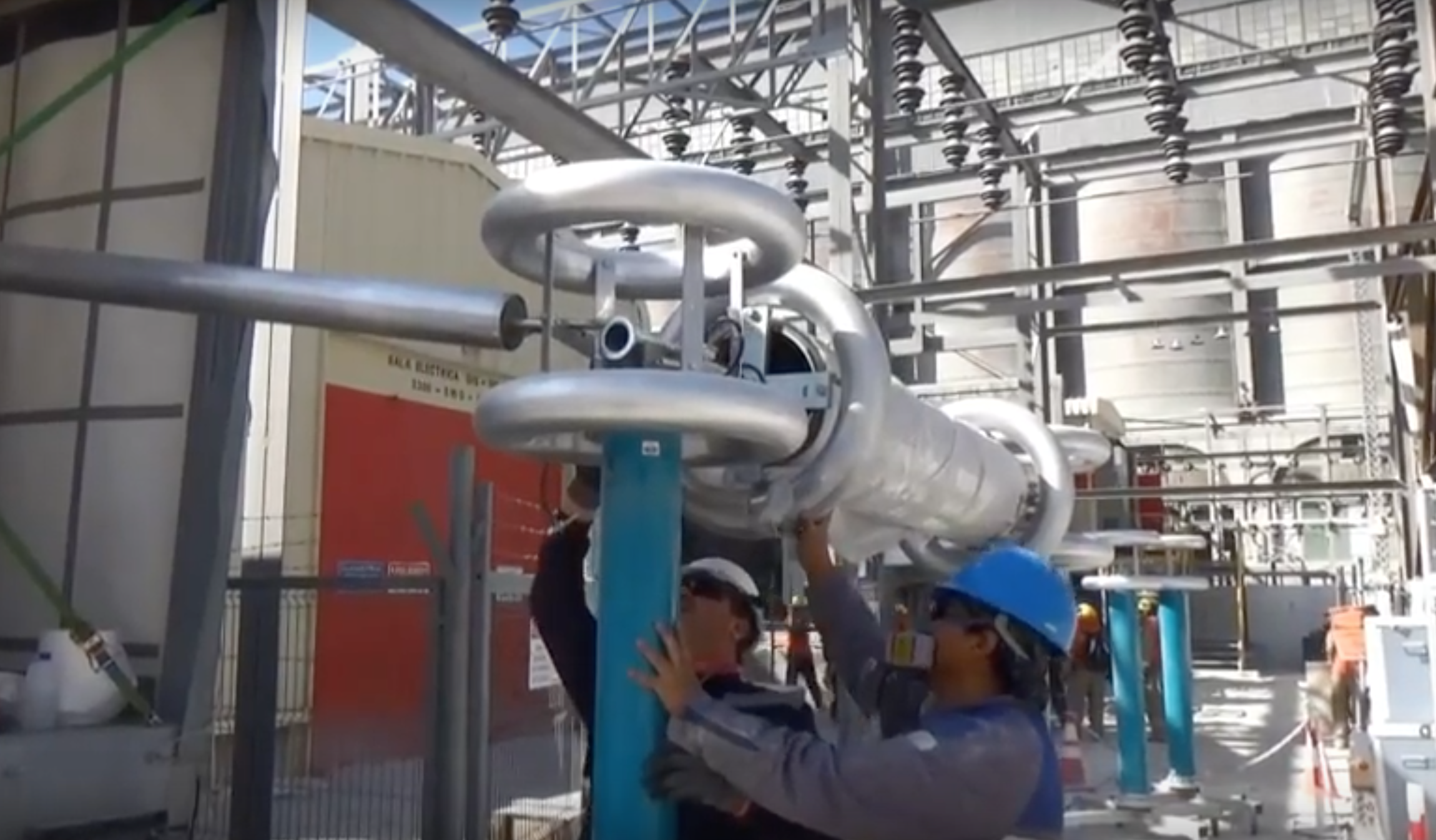

Quick and easy installation.
Frequency range 20 to 300 Hz.
Series and parallel operation of different Test Systems.
Low losses.

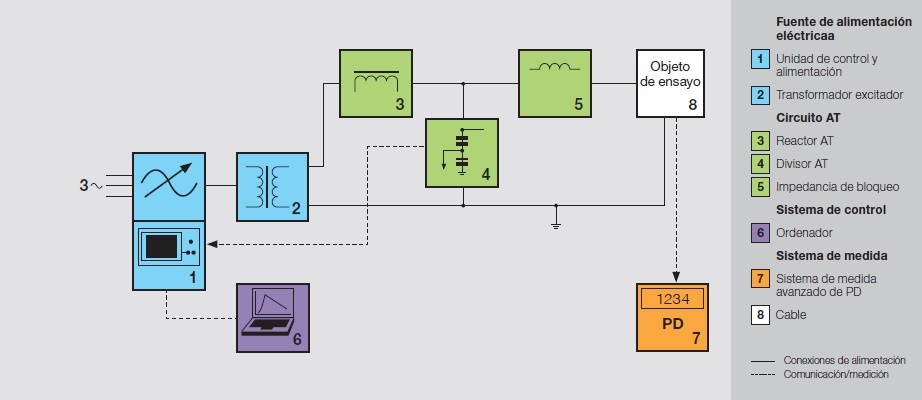

Block diagram of the
AC resonant test system
for the on-site test
of extruded cables
Block diagram of the AC resonant test system
for the on-site test of
extruded cables
